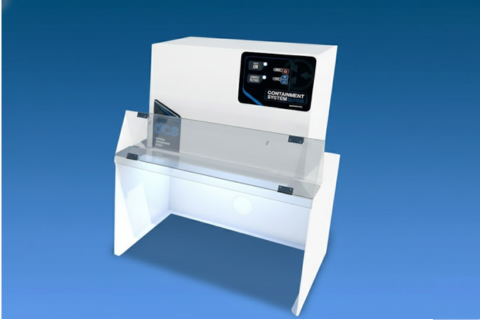

DCS 3D Printing/Alcohol Cleaning, Small Containment Cabinet

Part Number: 1-0045-0007

DCS 3D Printing/Alcohol Cleaning, Small Containment Cabinet

Desktop Fume Extractors

The Desktop Containment System (DCS) Series of fume extractors effectively eliminate harmful fumes associated with 3D printing resins and post-production IPA odors

Suggested Accessories

On/Off Hand-Switch Remote

Machine interface

4 in diameter Exhaust Kit

Accessories

Overview

Designed to eliminate odors and off-gases associated with 3D print resins and IPA
Captures airborne contaminants at source
Small Cabinet size: (HxWxD) 14.5x24x17.5 in. (37x 61×45 cm)

Benefits

Compact plug and play design
Ideal where floor space is limited
Multiple stage filtration
Whisper quiet operation ( 52dB(A) )

Features

LED illuminated interior
Variable speed control
Includes: Dust filter (#F071-BX),3D printing odor filter #(F072-GPP), HEPA filter (#F074)

Options

4″ dia. Exhaust Kit (#AA314)
Silencer for more noise suppression (#H250)

Dimensions (H x W x L)	DCS Small: 29 x 24 x 18 in (72 x 61 x 45 cm)
Shipping Weight	55 lb (25 kg)
Power	100-120 V, 60 Hz, 2 A
Sound Level	50 – 55 dB(A)
Filters	F071-BX (6/box), NC-GPP (5 refills), F074 (1/box)

Learn how to get the most out of your Quatro Air unit and troubleshoot common problems. You can also download the owner’s manual for this unit for technical details and instructions.

Owner’s Manual

Quatro Air Desktop Containment System Series Owner’s Manual

Unit Makes Excessive Noise

Suggested Solutions:

Blower wheel may be contacting cone – realign or replace the wheel
Fan isolators may be loose or off – replace isolator

Unit Will Not Start

Suggested Solutions:

Make sure the power cord is properly connected into the unit and the wall outlet
Inspect supply grille for blockage and remove any obstructions
Check the fuse on the unit and replace if blown
Power supply may be faulty – check breaker box

Unit Has Insufficient Airflow

Suggested Solutions:

Check the system for obstructions and if any exist, remove them
Replace the filters if they are clogged or full
If you need replacements but don’t have any, order new filters

Unit Has Excessive Airflow Suggested Solutions:

Suggested Solutions:

Make sure the filter(s) are properly installed

Spare Dust Filter

Part Number: F071-BX

(6) 2″ replacement pleated filters for your Quatro Air unit

2″ HEPA Filter 99.97%

Part Number: F074

Quantity: One (1) 2″ replacement HEPA filter for your Quatro Air unit.

Spare Odor Filter (2-3 refills)

Part Number: AG333-GPP

Replacement Media (GPP)

Odor Filter Refill

Part Number: NC-GPP
