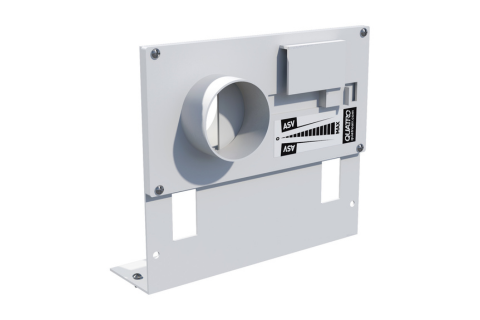

ASV – Auto Start Valve (With Integrated Support Stand)

ASV – Auto Start Valve (With Integrated Support Stand)

Part Number: See Technical Specifications

ASV – Auto Start Valve (With Integrated Support Stand)

The Auto Start Valves (ASVs – WITH support stand) are slide gates that open and close to help manage airflow at dental lab workstations.

Overview

  • Dual purpose slide gates divert airflow to active workstations and remotely switches dust collector on and off
  • Integrated support stands are designed to clamp or bolt directly on bench tops

Benefits

  • Connect as many ASVs as needed to one dust collector / fume extractor.
  • Dust collector will remain on as long as one valve is open

Features

  • Included: 20′ ASV cable; Integrated support stand
  • 3 hose connection options available for both front and back collars (1.5″, 2″, or 3″)

Options

  • Optional:Cable to connect to unit (#AE750) (1 cable per unit)
  • See Technical Specification tab for specific part numbers
Specification Value
Dimensions (HxWxL): 6.2×7.3×2.5 in (16x19x6 cm)
Shipping Weight: 2 lb (1 kg)



Part Number Selection Guide Rear Diameter (20 ft cable)
1.5″ Rear 2″ Rear 3″ Rear
Front Diameter 1.5″ AA433-A11-20 AA433-A12-20 AA433-A13-20
2″ AA443-A21-20 AA433-A22-20 AA433-A23-20
3″ AA433-A31-20 AA433-A32-20 AA433-A33-20
