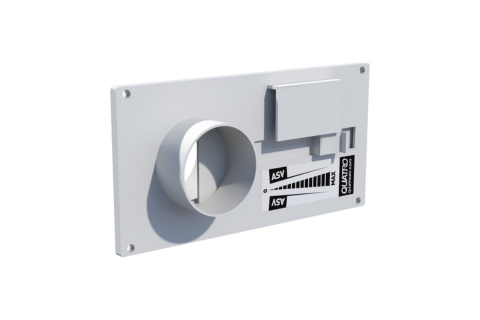

ASV – Auto Start Valve (Without Support Stand)

ASV – Auto Start Valve (Without Support Stand)

Part Number: See Technical Specifications

ASV – Auto Start Valve (Without Support Stand)

The Auto Start Valves (ASVs – WITHOUT support stand) are slide gates that open and close to help manage airflow at dental lab workstations.

Overview

Dual purpose slide gates divert airflow to active workstations and remotely switches dust collector on and off
Designed to mount on bench backsplashes or directly on benchtops for dust and fume extraction applications

Benefits

Connect as many ASVs as needed to one dust collector / fume extractor.
Dust collector will remain on as long as one valve is open

Features

Included: 20′ ASV cable
3 hose connection options available for both front and back collars (1.5″, 2″, or 3″)

Options

Optional:Table-Stand Support Bracket (#AA423); Cable to connect to unit (#AE750) (1 cable per unit)
See Technical Specification tab for specific part numbers

Specification	Value
Dimensions (HxWxL):	6.2×7.3×2.5 in (16x19x6 cm)
Shipping Weight:	2 lb (1 kg)

Part Number Selection Guide		Rear Diameter (20 ft cable)
Part Number Selection Guide		1.5″	2″	3″
Front Diameter	1.5″	AA413-A11-20	AA413-A12-20	AA413-A13-20
	2″	AA413-A21-20	AA413-A22-20	AA413-A23-20
	3″	AA413-A31-20	AA413-A32-20	AA413-A33-20

Quatro ASV Accessories Brochure
